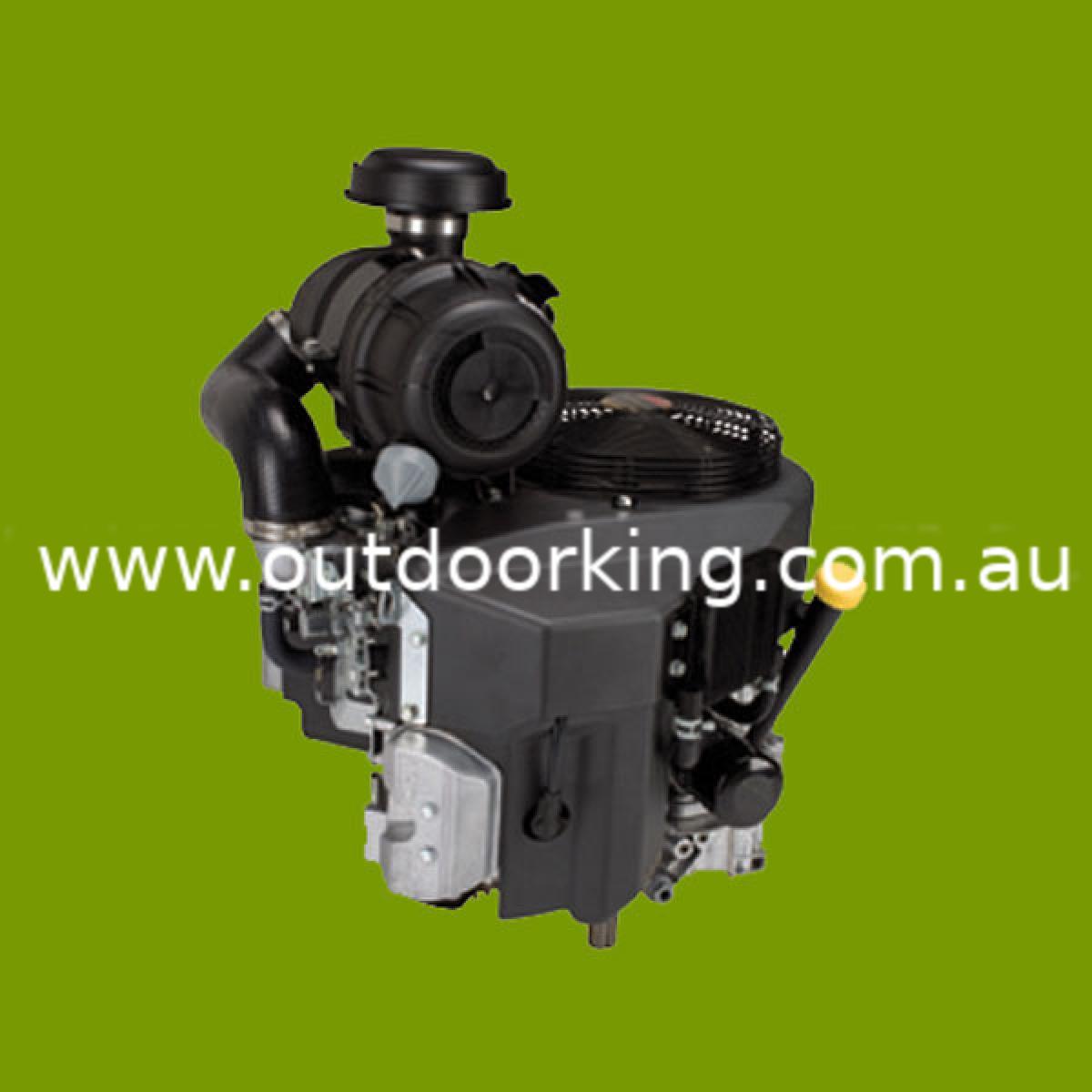

Kawasaki Vertical Engine FX751V-ES00-S - 24.5HP, 500-026




OEM Number Description Specifications
FX751V-ES00-S • 1" (25.4mm) x 80mm crankshaft
• Overhead valve
• 90° V-twin
• Pressurised lubrication
• Electronic spark ignition
• Automatic compression release
• Dual element air cleaner
• Internally vented carburettor
• Rotating grass screen
• High effi ciency oil cooler
• Cast-iron cylinder liners
• Metal engine cover
• Heavy-duty shift-type starter
Not compatible with greater than 10% ethanol fuel
ENGINE TYPE Forced Air Cooled 4 stroke
Vertical Shaft OHV Petrol Engine
Number of Cylinders 2
Bore x Stroke 3.33 x 2.99 in. (84.5 x 76mm)
Displacement 852cm (52 cu.in)
Compression Ratio 8.2:1
Maximum Power 24.5HP (18.3kw) / 3600 rpm
Maximum Torque 44.4 ft lbs. (60.2.0N.m) / 2200 rpm
Oil Capacity 2.1 U.S. qt. (2.0 litre) w/Filter
Dry Weight (without muffler) 105.0 lbs. (47.6 kg)





No Attachment Found
  • Availability: 0 Units in Stock
  • Availability: NO LONGER AVAILABLE
  • Product Warranty: -
  • Manufactured by: Stens
  • Condition: NEW
  • SKU: 500-026
