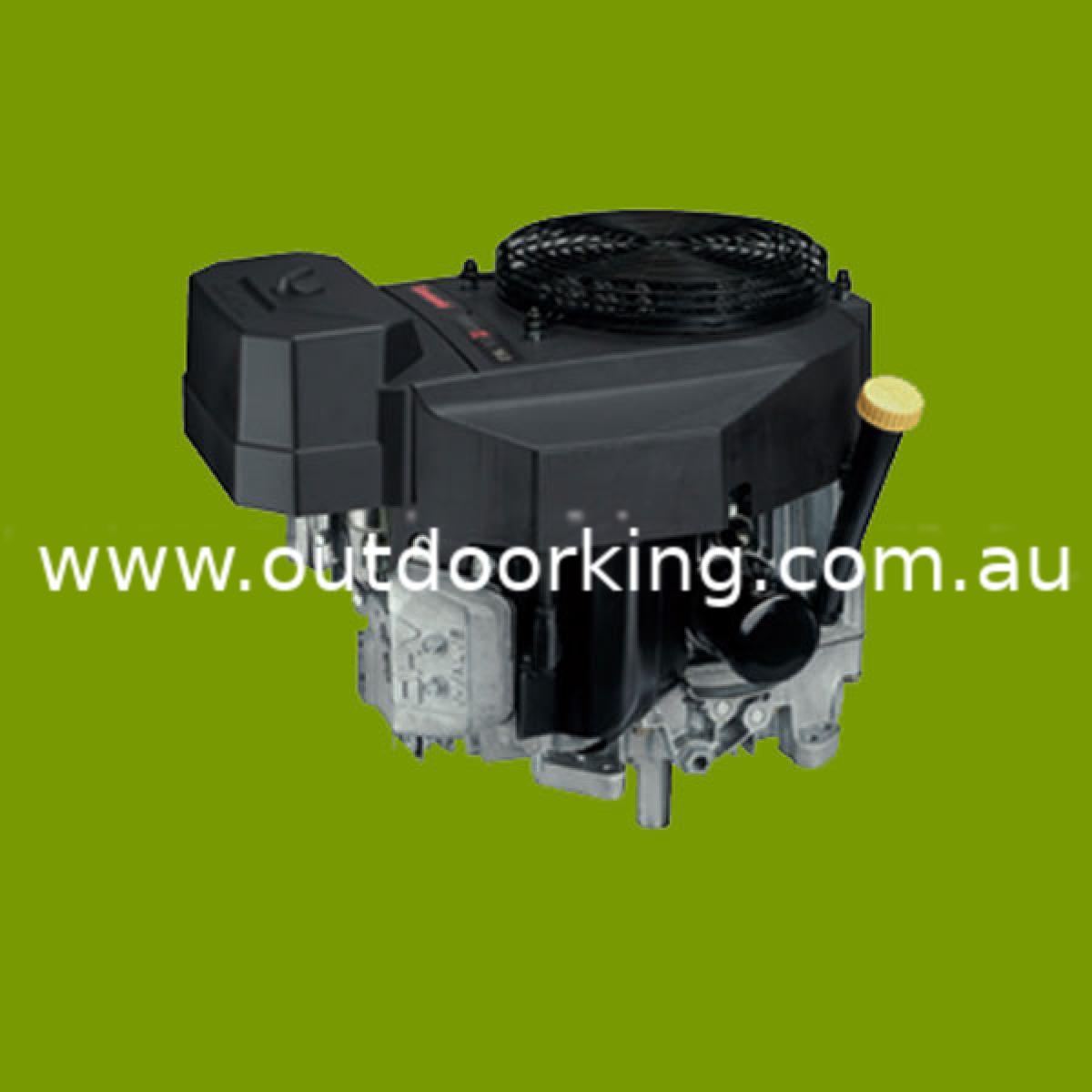

Kawasaki Vertical Engine FX691V-DS00-S - 22HP, 500-025




Replaces OEM Description Specifications
FX691V-DS00-S • 1.125" x 108.8mm crankshaft
• Overhead valve
• 90° V-twin
• Spin-on oil filter
• Pressurised lubrication
• Electronic spark ignition
• Automatic compression release
• Dual element air cleaner
• Twin barrel, internally vented carburettor with fuel
shut-off solenoid
• Rotating grass screen
• Cast-iron cylinder liners
• Metal engine cover
• Heavy-duty shift-type starter
Not compatible with greater than 10% ethanol fuel
ENGINE TYPE Forced Air Cooled 4 stroke
Vertical Shaft OHV Petrol Engine
Number of Cylinders 2
Bore x Stroke 3.1 x 3.0 in. (78 x 76mm)
Displacement 726cm (44.3 cu.in)
Compression Ratio 8.2:1
Maximum Power 22.0HP (16.4kw) / 3600 rpm
Maximum Torque 39.4 ft lbs. (53.4.0N.m) / 2200 rpm
Oil Capacity 2.2 U.S. qt. (2.1 litre) w/Filter
Dry Weight (without muffler) 102.7 lbs. (46.6 kg)





No Attachment Found
  • Availability: 0 Units in Stock
  • Availability: NO LONGER AVAILABLE
  • Product Warranty: -
  • Manufactured by: Stens
  • Condition: NEW
  • SKU: 500-025
