Rover Cylinder Head & Crankcase Parts List

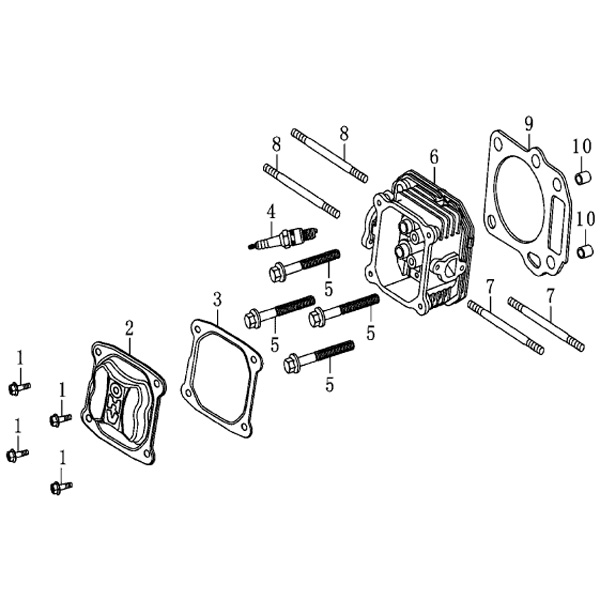

Cylinder Head Assembly

Click on Blue Part # Link for Pricing

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500CE	700	i5000	800	800S	5000CE	i5500	5500CE	880S	i7000
1	L380020070-0001	Bolt, Flange M6*14	4	4	4	4	4	4	4	4	4	4	4	4	4
2	L120230083-0001	COVER COMP. HEAD	1	1	1	1	1	1	1	1	1	1	1	1	1
3	L120250032-0001	PACKING, HEAD COVER	1	1	1	1	1	1	1	1	1	1	1	1	1
4	L270960046-0001	PLUG,SPARK RN9YC	1	1	1	1	1	1	1	1	1	1	1	1	1
5	L380140339-0001	BOLT, CONNECTING,ROD M8*50	4	4	4	4	4	4	4	4	4	N/A	N/A	N/A	N/A
5	L380140338-0001	BOLT, CONNECTING,ROD M8*55	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	4	4	4	4
6	L120080288-0001	HEAD COMP，CYLINDER	1	1	1	1	1	1	1	1	1	N/A	N/A	N/A	N/A
6	L120080279-0001	HEAD COMP，CYLINDER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
7	L380180124-0001	BOLT, STUD M6*91	2	2	N/A	N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
7	L380180101-0001	BOLT, STUD M6*95	N/A	N/A	2	2	N/A	2	2	2	2	N/A	N/A	N/A	N/A
7	L380180089-0001	BOLT, STUD M6*103	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	2	2	2	2
8	L380180114-0001	BOLT, STUD M6*89	2	2	N/A	N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
8	L380180101-0001	BOLT, STUD M6*95	N/A	N/A	2	2	N/A	2	2	2	2	2	2	2	2
9	L120150089-0001	GASKET, CYLINDER	1	1	1	1	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
9	L120150086-0001	GASKET, CYLINDER	N/A	N/A	N/A	N/A	N/A	1	1	1	1	N/A	N/A	N/A	N/A
9	L120150087-0001	GASKET, CYLINDER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
10	L380600117-0001	PIN, DOWEL, 10*14	2	2	2	2	2	2	2	2	2	2	2	2	2

Crankcase Parts List

Crankcase

Click on Blue Part # Link for Pricing

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500C	700	i5000	800	800S	l5000	i5500	i5500C	880S	i7000
1	110810143-0001	CRANK CASE	1	1	1	1	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
1	110810149-0001	CRANK CASE	N/A	N/A	N/A	N/A	N/A	1	1	1	1	N/A	N/A	N/A	N/A
1	110810122-0001	CRANK CASE	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	N/A
1	110810031-0001	CRANK CASE	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1
2	160200032-0001	SHIELD,TANK SIDE	1	1	1	1	1	1	1	1	1	1	1	1	1
3	380140013-0005	Bolt, Flange M6*16	2	2	2	2	2	2	2	2	2	2	2	2	2
4	380850006-0001	BOLT,STUD 6*85	2	2	2	2	2	2	2	2	2	2	2	2	2
5	380850002-0001	BOLT,STUD 6*78.5	1	1	1	1	1	1	1	1	1	1	1	1	1
6	380650335-0001	OIL SEAL 25387	1	1	1	1	1	1	1	1	1	1	1	1	1
7	140250006-0001	REED VALVE	1	1	1	1	1	1	1	1	1	1	1	1	1
8	380140037-0003	Bolt, Flange M6*10	1	1	1	1	1	1	1	1	1	1	1	1	1
9	380140441-0001	Bolt, Flange M6*12	3	3	3	3	3	3	3	3	3	3	3	3	3
10	110840010-0001	CAP,BREATHER	1	1	1	1	1	1	1	1	1	N/A	N/A	N/A	N/A
10	110840011-0001	CAP,BREATHER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
11	110850010-0001	PACKING，BREATHER	1	1	1	1	1	1	1	1	1	N/A	N/A	N/A	N/A
11	110850011-0001	PACKING，BREATHER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
12	380821590-0001	BUSH,INSTALL BOLT	1	1	1	N/A	N/A	1	N/A	N/A	N/A	1	N/A	N/A	N/A
13A	160200033-0001	SHIELD,TANK SIDE	1	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A
13A	160200037-0001	SHIELD,TANK SIDE	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	N/A	N/A	N/A
13B	293030005-0001	FLYWHEEL BRAKE	N/A	N/A	N/A	1	1	N/A	1	1	N/A	N/A	1	1	1
14A	380140067-0003	Bolt, Flange M6*12	1	1	1	N/A	N/A	1	N/A	N/A	1	1	N/A	N/A	N/A
14B	380140086-0002	BOLT,FLANGE M6*22	N/A	N/A	N/A	1	1	N/A	1	1	N/A	N/A	1	1	1
15	380740521-0001	TUBE，BREATHER	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
15	380740522-0001	TUBE，BREATHER	N/A	N/A	1	1	N/A	1	1	1	1	N/A	N/A	N/A	N/A
15	380740565-0001	TUBE，BREATHER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1
15	380740574-0001	TUBE，BREATHER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	N/A
16	171630010-0001	SHAFT,GOVERNOR ARM	1	1	1	1	1	1	1	1	1	1	1	1	1
17	380450527-0001	Washer 6131	1	1	1	1	1	1	1	1	1	1	1	1	1
18	380650338-0001	OIL SEAL 6114	1	1	1	1	1	1	1	1	1	1	1	1	1
19	381350004-0001	PIN,LOCK	1	1	1	1	1	1	1	1	1	1	1	1	1
20B	381140388-0001	SPRING,IDLE CONTROLLER	N/A	N/A	N/A	1	1	N/A	1	1	N/A	N/A	1	1	1

Crankcase Cover

CrankCase Cover

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500CE	700	i5000	800	800S	5000CE	i5500	i5500CE	880S	i7000
1	110820034-0001	CASE COVER	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
1	110820038-0001	CASE COVER	N/A	N/A	1	1	N/A	1	1	1	1	N/A	N/A	N/A	N/A
1	110820026-0001	CASE COVER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1
1	110820019-0001	CASE COVER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	N/A
2	380140024-0006	Bolt, Flange M6*28	7	7	7	7	7	7	7	7	7	N/A	N/A	N/A	N/A
2	380140148-0005	Bolt, Flange M8*50	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	6	6	6	6
3	380650347-0001	OIL SEAL	1	1	1	1	1	1	1	1	1	1	1	1	1
4	171640003-0001	PLATE,GOVERNOR HOLDER	1	1	1	1	1	1	1	1	1	1	1	1	1
5	380600121-0001	PIN,DOWEL 8*10	2	2	2	2	2	2	2	2	2	2	2	2	2
6	380140077-0005	Bolt, Flange M6*20	1	1	1	1	1	1	1	1	1	1	1	1	1
7	171750013-0001	GOVERNOR COMP	1	1	1	1	1	1	1	1	1	1	1	1	1
8	380600120-0001	PIN,DOWEL 8*14	2	2	2	2	2	2	2	2	2	2	2	2	2
9	110830025-0001	PACKING,CASE COVER	1	1	1	1	1	1	1	1	1	N/A	N/A	N/A	N/A
9	110830013-0001	PACKING,CASE COVER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
10	150570002-0001	RUBBER,OIL DEFLECTOR	1	1	1	1	1	1	1	1	1	1	1	1	1
11	110690016-0001	CAP ASSY	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
12	380140100-0003	Bolt, Flange M6*35	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
13	110690028-0001	CAP ASSY	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
14	110260025-0001	DRAIN BOLT	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
15	380450514-0001	Washer 10161.5	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
