Rover Air Filter, Tank & Carburetor Assembly

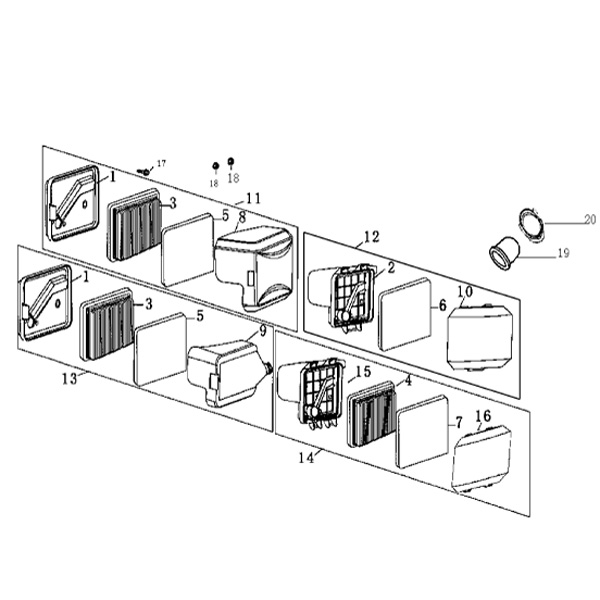

Air Filter Assembly

Click on Blue Part # Link for Pricing

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500CE	700	i5000	800	800S	5000CE	i5500	5500CE	880S	i7000
1	L180280004-0001	Elbow Complete Air Cleaner	4	4	4	4	4	4	4	4	4	4	4	4	4
2	L180120073-0001	Element	1	1	1	1	1	1	1	1	1	1	1	1	1
3	L180130133-0001	Filter Outer	1	1	1	1	1	1	1	1	1	1	1	1	1
4	L180070112-0001	Air Cleaner	1	1	1	1	1	1	1	1	1	1	1	1	1
5	L180020334-0001	Air Cleaner Assembly	4	4	4	4	4	4	4	4	4	N/A	N/A	N/A	N/A
6	L380140013-0005	Bolt Flange	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	4	4	4	4
7	L380370066-0001	Nut Flange	1	1	1	1	1	1	1	1	1	N/A	N/A	N/A	N/A
8	L180280014-0001	Elbow Complete Air Filter	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
9	L180130142-0001	Filter Outer	2	2	N/A	N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
10	L180070118-0001	Cover Air Cleaner	N/A	N/A	2	2	N/A	2	2	2	2	N/A	N/A	N/A	N/A
10
11	L180020435-0001	Air Cleaner Assembly	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	2	2	2	2
12	L180070112-0001	Cover Air Cleaner (Snorkel)	2	2	N/A	N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
13	L380180101-0001	BOLT, STUD M6*95	N/A	N/A	2	2	N/A	2	2	2	2	2	2	2	2
14	L120150089-0001	GASKET, CYLINDER	1	1	1	1	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
15	L120150086-0001	GASKET, CYLINDER	N/A	N/A	N/A	N/A	N/A	1	1	1	1	N/A	N/A	N/A	N/A
15	L120150087-0001	GASKET, CYLINDER	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
16	L380600117-0001	PIN, DOWEL, 10*14	2	2	2	2	2	2	2	2	2	2	2	2	2

Carburetor Assembly

Carburetor

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500CE	700	122	800	800S	i5000	L5000CE	i5500	5500CE	880S	i7000
1	L170430057-0001	PACKING,INSULATOR	4	4	4		4	4	4	4	4	4	4	4	4	4
1	170430056-0001	PACKING,INSULATOR	1	1	1		1	1	1	1	1	1	1	1	1	1
3	L180120133-0001	Filter Outer	1	1	1		1	1	1	1	1	1	1	1	1	1
4	L180070117-0001	Cover Air Cleaner	1	1	1		1	1	1	1	1	1	1	1	1	1
5	L180020334-0001	Air Cleaner Assembly	4	4	4		4	4	4	4	4	4	N/A	N/A	N/A	N/A
6	L380140013-0005	Bolt Flange	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	4	4	4	4
7	L380370066-0001	Nut Flange	1	1	1		1	1	1	1	1	1	N/A	N/A	N/A	N/A
8	L180280014-0001	Elbow Complete Air Filter	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
9	L180130142-0001	Filter Outer	2	2	N/A		N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
10	L180070118-0001	Cover Air Cleaner	N/A	N/A	2		2	N/A	2	2	2	2	N/A	N/A	N/A	N/A
10
11	L180020435-0001	Air Cleaner Assembly	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	2	2	2	2
12	L180070112-0001	Cover Air Cleaner (Snorkel)	2	2	N/A		N/A	2	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
13	380180101-0001	BOLT, STUD M6*95	N/A	N/A	2		2	N/A	2	2	2	2	2	2	2	2
14	120150089-0001	GASKET, CYLINDER	1	1	1		1	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
15	120150086-0001	GASKET, CYLINDER	N/A	N/A	N/A		N/A	N/A	1	1	1	1	N/A	N/A	N/A	N/A
15	120150087-0001	GASKET, CYLINDER	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
16	380600117-0001	PIN, DOWEL, 10*14	2	2	2		2	2	2	2	2	2	2	2	2	2

Tank Assembly

Carburetor

Item # 1	Part # Link	Description	Model & Required Quantity
Item # 1	Part # Link	Description	i4000	SX700	i4500	4500CE	700	i5000	800	800S	L5000CE	i5500	5500CE	880S	i7000
1	170870094-0001	Cap Comp.,Fuel Filler	1	1	1	1	1	1	1	1	1	1	1	1	1
2	380140333-0001	Bolt, Flange M6*18	1	N/A	1	1	N/A	1	1	1	N/A	1	1	1	1
3	380450444-0002	Washer 6252	1	1	1	1	1	1	1	1	1	1	1	1	1
4	170500539-0001	Tank Comp.,Fuel	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
5	380140013-0005	Bolt, Flange M6*16	1	1	1	1	1	1	1	1	N/A	1	1	1	1
6	170010017-0001	STRAINER,FUEL	1	1	1	1	1	1	1	1	1	1	1	1	1
7	380140067-0003	Bolt, Flange M6*12	1	N/A	1	1	N/A	1	1	1	N/A	1	1	1	1
8	170650010-	HOLDER，FUEL TANK	N/A	N/A	1	1	N/A	1	1	1	1	1	1	1	1
9	380930025-0001	CLIP,WIRE HARNESS	1	1	1	1	1	1	1	1	1	1	1	1	1
9	380940346-	CLIP,WIRE HARNESS	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
10	380750234-0001	Tube,Fuel 5.59.5285	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
10	380750202-0001	Tube,Fuel 5.59.5295	N/A	N/A	1	1	N/A	1	1	1	1	N/A	N/A	N/A	N/A
10	380750320-0001	Tube,Fuel 5.59.5315	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1	1	1	1
11	380950190-0001	Clip,Tube	2	2	2	2	2	2	2	2	2	2	2	2	2
12	170500687-0001	Tank Comp.,Fuel	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
13	380370048-0001	Nut, Flange M6	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
14	380850003-0001	BOLT,STUD 6*60	1	1	N/A	N/A	1	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
