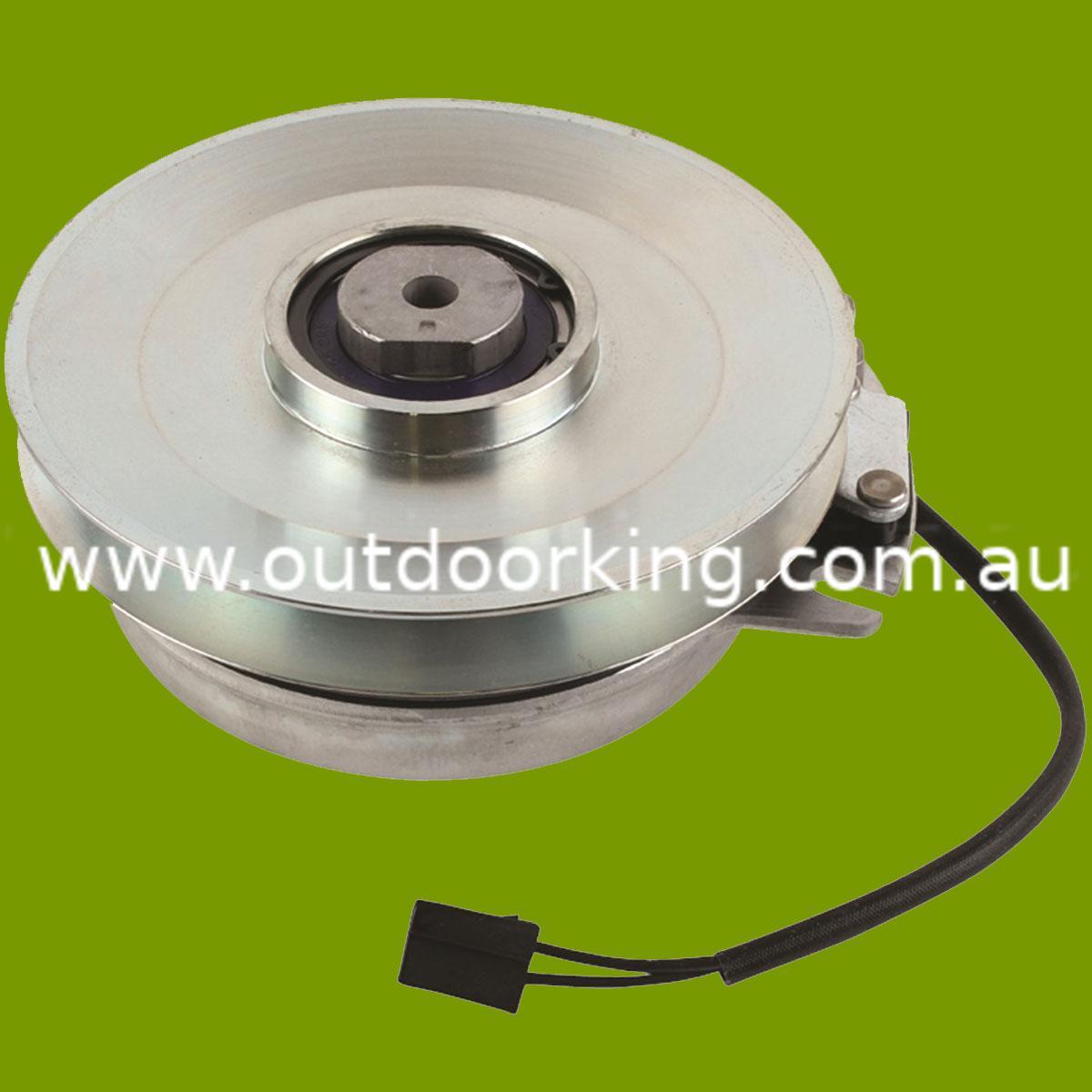

Toro Extreme Electric PTO Clutch assembly 5218-33, 255-560X

  • Availability: Leaves our warehouse within 3-6 business days
  • Product Warranty:3 Months Warranty
  • Manufactured by: Stens
  • Condition: NEW
  • SKU: 255-560X
Ask a Question

$604.05

Add to Cart:

! IMPORTANT INFORMATION ON ELECTRIC CLUTCHES
Outdoorking Spares stock’s Extreme Clutches which are the industry standard in clutches & used by many OEM’s around the world. Electric
PTO Clutches are a specialist component that should only be fitted by a servicing dealer with the correct equipment to test both
the charging circuits & battery condition, over the counter sales of clutches as spare parts should be discouraged. WHY? - The
main causes of failures to electric clutches are due to faults with the battery & or charging circuits not providing the correct current
to operate the clutch adequately leading to premature failure. It is therefore the responsibility of the servicing dealer to test these
items prior to installing a new clutch, failure to do so will void warranty. Warranty covers normal use and does not cover damage or
defect which results from alteration, accident, neglect, or improper clutch selection, installation, operation, or maintenance.
Warranty covers faulty manufacture & or workmanship.


Replaces OEMOutdoorking Product Description ©Fits ModelsDimensions
ENCORE: 603078
EXMARK: 103-0690, 105-3630, 109-2916, 109-7036, 109-9276, 1-653048, 1-653292, 653048, 653292, E653048, E653292
GA: X0017
LAWN BOY: 109-9276
TORO: 103-0690, 105-3630, 109-2916, 109-9276, 125-4673, 130-1849, 130-4673, 1-653048, 1-653292, 653048, 653292, E653048, E653292
WARNER: 5218-109, 5218-150, 5218-16, 5218-201, 5218-205, 5218-215, 5218-251, 5218-296, 5218-327, 5218-335, 5218-44, 5218-49, 5218-80, 5218-80C
WRIGHT MFG: 71410013
Electric PTO Clutch AssemblySelected Toro Z Master models including Z320 (74191, 74180) 1998 models, Z325 (74182, 74183) 1998 models,
Z350 (74187) 2000 models.
Pulley Diameter: 4.875" (123.825mm)
I.D: 1 1/8" (28mm)
Uses 5/8" Belt ("B" or 69 Series Belt)
Operates in a clockwise direction.
175 ft lb rating @ 3,000 rpm.
