Click on Blue Part # Link for Pricing

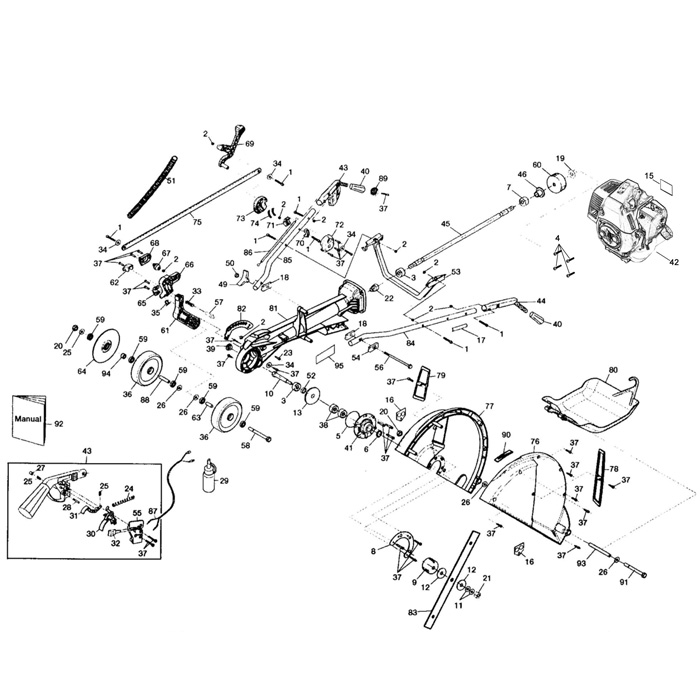

| Key # | Part # Link | Description | Key # | Part # Link | Description |
| 1 | 40650 | Screw M5 X 36mm TORX | 48 | 44001 | Pro Air Cowl Plug (KOM G34L) |
| 2 | 40652 | Nut Nyloc 5mm | 49 | 44003 | Handle Knob Black with Nut |
| 3 | 40835, 63474 | Needle Bearing 32 x 10 x 12 with Seal | 50 | 44006 | Nut 1/4" BSW |
| 4 | 40838 | Hex Screw 6mm x 19mm | 51 | 44012 | Corrugated Loom 400mm |
| 5 | 40906 | 'O' Ring 64 x 1.75mm | 52 | 44016 | Spacer 8.35mm |
| 6 | 42112 | Felt Seal | 53 | 44062 | Handle Cross Brace |
| 7 | 43108 | Bearing 37 x 12 x 12 | 54 | 44064 | Handle Bolt Hex Piece Black |
| 8 | 43109 | Blade Cover Support | 55 | 44069 | Handle Housing Small Right Hand |
| 9 | 43112 | Blade Drum | 56 | 44074 | Handle Bolt 1/4" x 6" BSW |
| 10 | 43114 | Blade Shaft Drive | 57 | 44302 | Height Adjuster Pin |
| 11 | 43115 | Blade Washer Small | 58 | 44439 | G Wheel Axle Bolt 3/8" x 5" |
| 12 | 43116 | Blade Washer Large | 59 | 44305 | Sealed Bearing 28 x 8 x 12.8mm |
| 13 | 43122 | Crown Gear L/E | 60 | 44312 | Pro Clutch Drum Cup (32mm Long) |
| 14 | 43125 | Spacer 15.5mm | 61 | 44401 | Golf Wheel Arm |
| 15 | 43127 | Warning Label Hot Motor | 62 | 44401 | Height Adjuster Knob |
| 16 | 43128 | Warning Label Blade Cover | 63 | 44403 | Wheel Axle Tube Spacer 32.5 |
| 17 | 43133 | Warning Label Handle | 64 | 44404 | Steel Wheel Hub Disc DIA 165mm |
| 18 | 43142, 43955 | Handle AV Rubber | 65 | 44406 | Wheel Arm Lever Bracket |
| 19 | 43163 | Flange Nut 3/8" UNC | 66 | 44407 | Wheel Arm Lever |
| 20 | 43172 | Nut Nyloc 3/8" | 67 | 44408 | Ball Joint |
| 21 | 43171, 47173 | Nut M12 x 1.75 | 68 | 44409 | Ball Joint Cover |
| 22 | 43176 | Pinion Gear Long (25.4mm) | 69 | 44410 | Height Adjuster Operator Handle |
| 23 | 43179 | Bearing Screw M5 x 39 | 70 | 44411 | Height Adjuster Tube Bracket Left Hand |
| 24 | 43198 | Trigger Complete Spring | 71 | 44412 | Height Adjuster Tube Bracket Right Hand |
| 25 | 43199 | Spring Small | 72 | 44413 | Internal Bracket Left Hand |
| 26 | 43218 | Washer 9.77 x 19.05 x 1.6 ZC | 73 | 44414 | Internal Bracket Right Hand |
| 27 | 43223 | Throttle Half Button | 74 | 44415 | Spring L51mm for # 44412 |
| 28 | 43224 | Throttle Lock Pin | 75 | 44416 | Height Adjuster Bar |
| 29 | 43227 | Grease & Dispencer | 76 | 44417 | Blade Cover Left Hand |
| 30 | 43221 | Throttle Trigger | 77 | 44418 | Blade Cover Right Hand |
| 31 | 43292 | Throttle Interlock | 78 | 44419 | Screen for # 44417 |
| 32 | 43294 | Switch Slide Red | 79 | 44420 | Screen fo # 44418 |
| 33 | 43452 | Height Adjuster Arm Complete Spring | 80 | 44421 | Golf Debris Deflector |
| 34 | 43484 | Washer 22.43 x 5.94 | 81 | 44422 | Golf Main Casing |
| 36 | 43765 | Wheel Only | 82 | 44423 | Height Adjuster Plate |
| 37 | 43790 | Screw 5.5mm for plastic | 83 | 44424 | Golf Blade 17 1/4" |
| 38 | 43860 | Bearing 32 x 10 x 12 + 4mm | 84 | 44425 | Golf Tubular Handle Left Hand |
| 39 | 43910 | Dust Plug Red | 85 | 44426 | Golf Tubular Handle Left Hand |
| 40 | 43922 | Rubber Handle Grip | 86 | 44427 | Golf Throttle Cable Assembly |
| 41 | 44438 | G Main Body Bearing Cover | 87 | 44428 | Golf Ignition Wire |
| 42 | 43947 | KOMATSU ZENOAH MOTOR G34L | 88 | 44429 | Wheel Axle Tube Spacer Long 56.6mm |
| 42 | 63869A | MITSUBISHI ENGINE TLE33FA-UAU | 89 | 44430 | Leg Pad |
| 43 | 43960 | Pro Handle Throttle Assembly | 90 | 44431 | Golf Edger Sight Piece |
| 44 | 43961 | Pro Left Hand Handle | 91 | 44432 | Bolt Debris Deflector |
| 45 | 43978 | Pro Shaft (Uses Flanged Nut) | 92 | 44433 | Manual Golf Edger |
| 46 | 43980 | Flange Bush Spacer | 93 | 44435 | Spacer Debris Deflector L 89mm |
| 47 | 44000 | Pro Air Deflector (KOM G34L) | 94 | 44436 | Disc Spacer Bush L13.1mm |
