Click on Blue Part # Link for Pricing

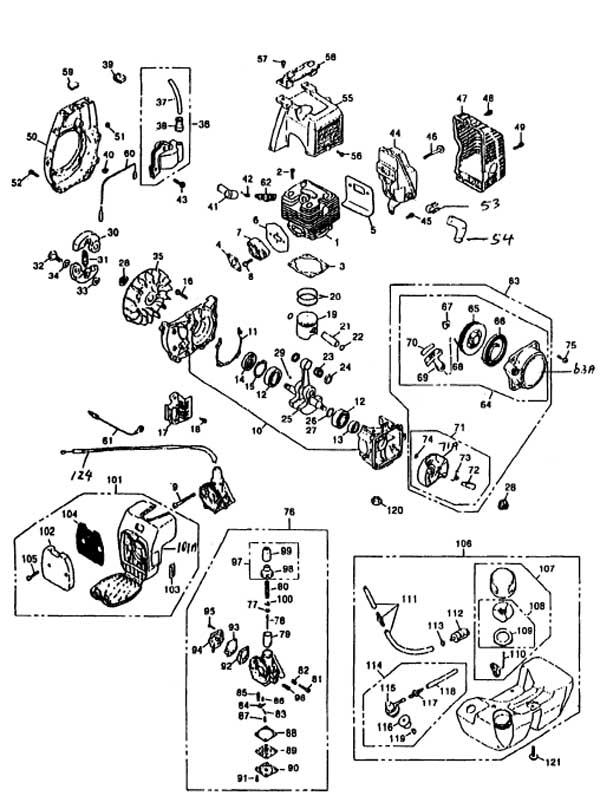

| Key # | Part # Link | Description | Key # | Part # Link | Description |
| 1 | 46100 | Cylinder | 63A | 46219 | Starter Housing |
| 2 | 46102 | Bolt | 64 | Only as Parts | Recoil Assembly |
| 3 | 46104 | Gasket | 65 | 46220 | Reel |
| 4 | 46106 | Gasket | 66 | 46222 | Spring |
| 5 | 46108 | Gasket | 67 | 46224 | Screw |
| 6 | 46110 | Gasket | 68 | 46226 | Rope |
| 7 | 46112 | Insulator | 69 | 46228 | Knob |
| 8 | 46114 | Screw | 70 | 46230 | Tape NLA |
| 9 | 46116 | Screw | 71 | Only as Parts | Pulley Assembly |
| 10 | 46118 | Crankcase Set | 71A | 46231 | Starter Pulley Catch |
| 11 | 46120 | Gasket | 72 | 46232 | Ratchet |
| 12 | 46122 | Bearing | 73 | 46234 | Spring |
| 13 | 46124 | Seal | 74 | 46236 | E-Ring |
| 14 | 46126 | Seal | 75 | 46238 | Screw |
| 15 | 46128 | Ring | 76 | 46240 | Carburettor Ass'y |
| 16 | 46130 | Bolt | 77 | 46242 | Retainer |
| 17 | 46132 | Guard | 78 | 46246 | Needle |
| 18 | 46134 | Screw | 79 | 46248 | Valve |
| 19 | 46136 | Piston | 80 | 46250 | Spring |
| 20 | 46138 | Ring | 81 | 46252 | Screw |
| 21 | 46140 | Pin | 82 | 46254 | Spring |
| 22 | 46142 | Ring | 83 | 46256 | Pin |
| 23 | 46144 | Bearing | 84 | 46258 | Arm |
| 24 | 46146 | Washer | 85 | 46260 | Valve |
| 25 | 46148 | Crankshaft Comp. | 86 | 46262 | Spring |
| 26 | 46150 | Shim, 0.3T | 87 | 46268 | Screw |
| 27 | 46152 | Shim, 0.1T | 88 | 46270 | Gasket |
| 28 | 46154 | Nut | 89 | 46272 | Diaphragm Ass'y |
| 29 | 46156 | Key | 90 | 46274 | Cover |
| 30 | 46158 | Shoe | 91 | 46276 | Screw |
| 31 | 46160 | Spring | 92 | 46278 | Gasket |
| 32 | 46162 | Screw | 93 | 46280 | Diaphragm |
| 33 | 46164 | Washer | 94 | 46282 | Cover Ass'y |
| 34 | 46166 | Washer | 95 | 46284 | Screw |
| 35 | 46168 | Rotor | 96 | 46286 | Needle |
| 36 | 46170 | Coil Assembly | 97 | 46288 | Cap Comp. |
| 37 | 46172 | Cord | 98 | 46290 | Cap |
| 38 | 46174 | Cap | 99 | 46292 | Seal |
| 39 | 46176 | Grommet | 100 | 46294 | Clip |
| 40 | 46178 | Grommet | 101 | Only as Parts | Cleaner Assembly |
| 41 | 46180 | Cap | 101A | 46296 | Air Filter Body |
| 42 | 46182 | Spring | 102 | 46298 | Element |
| 43 | 46184 | Screw | 103 | 46300 | Label NLA |
| 44 | 46186 | Muffler | 104 | 46302 | Screen |
| 45 | 46188 | Screw | 105 | 46304 | Screw |
| 46 | 46190 | Bolt | 106 | 46306 | Tank Ass'y |
| 47 | 46192 | Cover | 107 | 46308 | Cap Ass'y |
| 48 | 46194 | Bolt | 108 | 46310 | Valve Comp. NLA |
| 49 | 46196 | Bolt | 109 | 46312 | Packing NLA |
| 50 | 46198 | Cover, Fan | 110 | 46314 | Stopper NLA |
| 51 | 46200 | Grommet | 111 | 46316 | Pipe Comp. |
| 52 | 46202 | Bolt | 112 | 46318 | Filter Assembly |
| 53 | 46201 | Clamp | 113 | 46320 | Clip |
| 54 | 46203 | Pipe | 114 | 46321 | Pump Comp. |
| 55 | 46204 | Cover, Cylinder | 115 | 46322 | Pump |
| 56 | 46206 | Screw | 116 | 46324 | Grommet NLA |
| 57 | 46208 | Screw | 117 | 46326 | Joint |
| 58 | 46210 | Guard | 118 | 46328 | Tube |
| 59 | 46212 | Grommet | 119 | 46330 | Valve |
| 60 | 46214 | Cord | 120 | 46332 | Washer |
| 61 | 46216 | Cord, Earth | 121 | 46334 | Screw |
| 62 | 46218 | Spark Plug | 124 | 46336 | Cable Comp. |
| 63 | Only as Parts | Starter Assembly | 125 | Clamp |
