Atom 101,103 & 104 Edger Engine Parts List

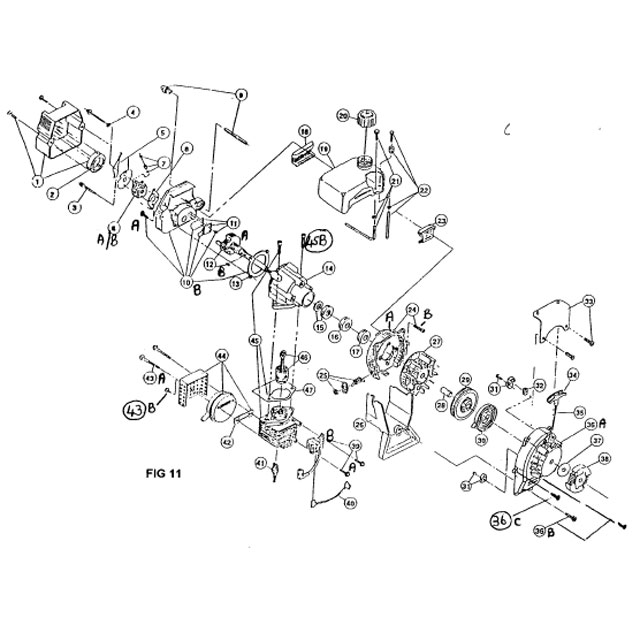

Atom 101 Parts Diagram

Click on Blue Part # Link for Pricing

Key # Part # Link Description Key # Part # Link Description
1 43300 Carburetor/Air Cleaner Assembly (including item 2) 38A 43119 Clutch Rotor Assembly
2 43302 Air Cleaner Filter 38B 43117 Clutch Spring
3 43304 Carburetor Mounting Screw 39A 43305 Electronic Module Mounting Screw
4 43306 Wavey Washer 39B 43370 Module Assembly
5 43308 Choke Lever and Plate 40 43372 Wire Lead
6A 43640 Carburetor Assembly Walbro WT275 NLA 41 43374 Spark Plug
6B 43644 Carburetor Assembly Zama  NLA 42 43376 Exhaust Gasket
7A 43639 Throttle Adjustment Assembly (Walbro)  NLA 43A 43378 Muffler Mounting Bolt Assembly
7B 43645 Throttle Adjustment Assembly (Zama)  NLA 43B 43379 Small Muffler Screw NLA
8 43314 Carburetor Gasket 44 43380 Muffler Assembly
9 43316 Primer and Hose Assembly 45A 43382 Cylinder Assembly with 43386
10A 43317 Carburetor Mount Assembly Screw 45B 43383 Cylinder Bolt NLA
10B 43318 Carburetor Mount Assembly (includes items 11 & 13) 46 43384 Piston and Rod Assembly
11 43320 Reed Assembly 47 43386 Cylinder Gasket
12A 43322 Crank Shaft * 43394 Piston Ring
12B 43398 Flywheel Key
13 43324 Carburetor Mount Gasket
14 43326 Crankcase Service Assembly (includes items 12, 14-17)
15 43328 Inner Bearing Assembly
16 43330 Seal
17 43332 Outer Bearing Assembly
18 43338 Rear Mounting Pad
19 43336 Fuel Tank Assembly (includes items 20-22)
20 43342 Fuel Cap Assembly
21 43340 Fuel Return Line Assembly
22 43344 Fuel Line Assembly
23 43334 Front Mounting Pad
24A 43345 Shroud Screw
24B 43346 Shroud Assembly
25 43347 Switch Assembly
26 43348 Shroud Extension and Stand
27 43350 Flywheel Assembly
28 43352 Spacer
29 43354 Recoil Pulley Assembly
30 43356 Recoil Spring
31 43358 Pulley Retainer Assembly
32 43360 Rope Guide
33 43362 Fuel Tank Guard Assembly
34 43364 Pull Handle
35 43366 Rope
36A 43368 Starter Housing Assembly  NLA
36B 43405 Screw Clutch Housing/Shroud
36C 43400 Starter Housing Screw
37 43123 Clutch Washer
