Atom 101, 103 & 104 Edger Frame Parts List

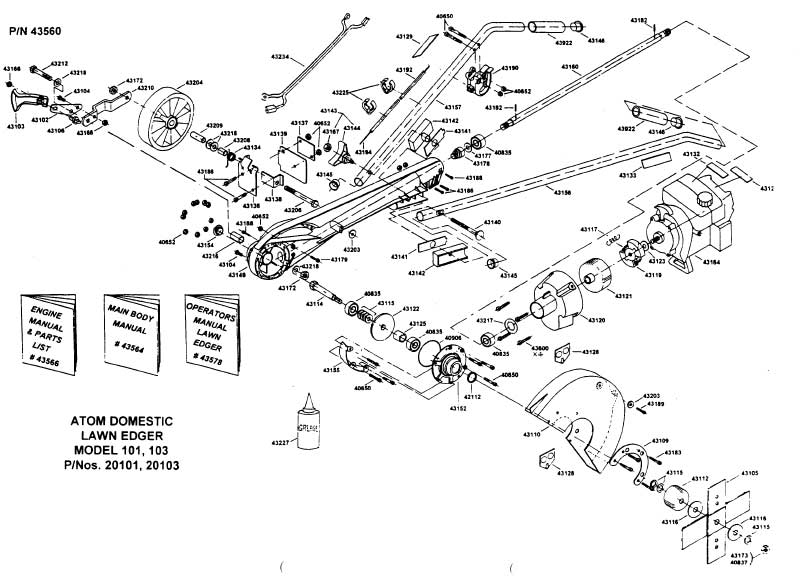

Atom 101 Parts Diagram

Click on Blue Part # Link for Pricing

Part # Link Description Part # Link Description
40650 Screw M5 X 36mm TORX 43157 Main Handle RH (Domestic)
40652 Nut Nyloc 5mm 43160 Main Drive Shaft with # 43182
40835 Ball Bearing 6203RS 43164 Gas Motor (Domestic)
40837 Nyloc Nut 10mm (early models) 43166 Nut 5/16 Nyloc
40906 " O " Ring 43167 Nut 5/16 UNC
42112 Felt Seal 43172 Nut 3/8 Nyloc
43102 Adjusting Arm Spring 43173 Nut 12mm x 1.75 (for current models)
43103 Adjusting Arm Handle 43174 Operators Manual (gas)
43104 Bolt 5/16 BSW 43177 Pinion Washer "020"
43105 Cross - Blade Set 43178 Pinion L/E
43106 Adjusting Arm Bolt and Pin 43179 Screw M5 x 39 S/thread
43109 Blade Cover Support 43182 Spring Pin 3/16 x 11/16
43110 Blade Cover 43183 Screw M5 x 38
43112 Blade Drum 43186 Screw M5 x 12.5
43114 Blade Shaft Drive + 43173 Nut 43188 Screw Self Threading M5 x 18
43115 Blade Washer Small (hardened) 43189 Screw Self Threading M5 x 19
43116 Blade Washer Large 43190 Throttle Trigger Assembly
43117 Clutch Spring 43192 Throttle Cable Outer
43119 Clutch Assembly 43194 Throttle Cable Inner
43120 Clutch Cover Connection 43203 Washer Blade Cover
43121 Clutch Drum No Longer Available 43204 Wheel Complete
43122 Crown Gear L/E 43206 Wheel Axle Bolt 3/8 x 4 1/2
43123 Clutch Washer (hardened) 43208 Wheel Axle Spacer 38mm
43125 Crown Gear Spacer 43209 Wheel Axle Tube 44mm
43127 Warning Label " Hot Motor " N/A 43210 Wheel Support Arm
43128 Warning Label " Blade Cover " N/A 43212 Wheel Support Axle Bolt 3/8 x 2.5"
43129 Label " Starting " N/A 43216 Height Adjust Spacer
43132 Label " Starting Instructions " N/A 43217 Washer, Clutch Housing
43133 Warning Label on L. Handle N/A 43218 Washer 3/8 x 20mm
43134 Grass Shield Spring 43225 Throttle Wire Clamp
43136 Grass Shield 43227 Grease & Dispenser
43137 Grass Shield Cover 43234 Switch Wire
43138 Grass Shield Limiter 43566 Atom Engine Manual & Parts List
43139 Grass Rubber Flap 43600 Screw 4.5 x 18.5
43140 Handle Bolt 5/16 x 6 " Cup Head 43922 Handle Grip
43141 Handle A V Rubber Plate
43142 Handle A V Rubber
43143 Handle Knob/Nut Assembly
43145 Handle End Plug (small)
43146 Handle End Plug (large) (early models only not required with 43922)
43148 Handle Grip (early model only now use 43922)
43149 Main Body
43152 Main Body Bearing Cover
43154 Main Body Cover Plug
43155 Main Body Shield
43156 Main Handle LH (Domestic)
