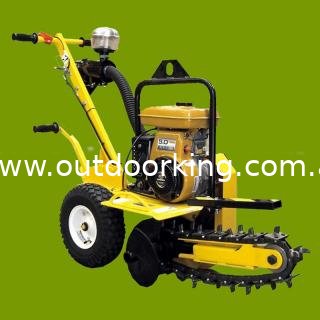

THIS GROUND HOG TRENCHING MACHINE WILL DIG A TRENCH AT
2.5–3 METRES (8-10FT) PER MINUTE WITHOUT THE OPERATOR EVEN RAISING A SWEAT!.
The GroundHog uses replaceable carbide-tipped bits and will dig a 9cm wide trench to depths of 16, 20 and 30cm easily and quickly
Now also available with heavy duty Shark Tooth chain with replaceable carbide tipped rock type bits
This easy to use trencher is operator propelled to offer controlled digging. You will find it digs straight to the exact depth with an absolute minimum of effort.
It is suitable for a wide variety of ground, including sand, lawn, clay, gravel and road base. It fits through narrow gates and doorways and trenches close to walls and fences. The side cleaning auger stops material falling back into the trench. This saves precious clean up time, important for contractors who want to move onto the next job as soon as possible.
The Ground Hog uses replaceable carbide-tipped bits and will dig a 9cm wide trench to depths of 16, 20 and 30cm easily and quickly.
Other features include:
-
Heavy gauge steel uni body frame provides durability while the straight forward drive system makes maintenance easy
-
Durable powder coating
-
18 carbide tipped hardened steel teeth rotate as they cut, ensuring a clean finish
-
Solid roller digging chain for increased life
-
Wide pneumatic tyres with tubes
-
Centrifugal clutch with all metal shoes and drum, needle bearing equipped
-
NEW ROLLER FOR GROUND HOG T4D TRENCHER
Through extensive testing, Ground Hog has found that their new roller replacement for the toothed digging chain sprocket significantly increased the life of the trencher digging chain while decreasing the risk of chain breaks. The chain rollers ride on the centre wheel of the roller while the side plates of the chain are guided by the wheel shoulders . In testing, sprocket jamming situations that would normally cause chain breaks were eliminated when using the roller.
|
|
Model T4D/T4DS |
|
Engine |
SUBARU EY20 5.0HP with Centrifugal Clutch |
|
Weight |
107kg |
|
Depths |
16, 20, 30 cms (6,8,12") |
|
Chain |
Bullet or Shark Tooth |
 |
